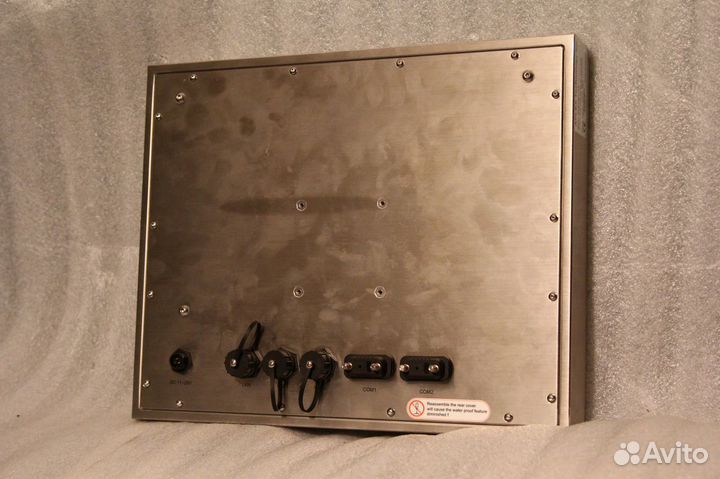

Aplex APC-3597AT-27

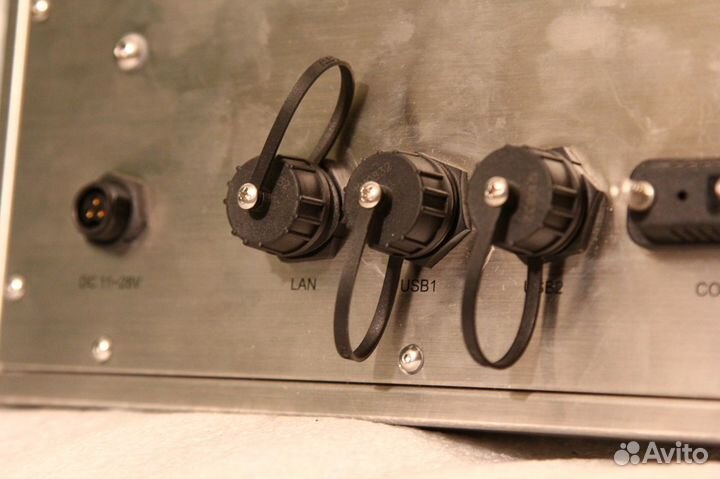

Aplex APC-3597 - Fanless 15" IP 65 Stainless Steel Panel PC with Intel Atom N270 Processor Ask about this product Features • Fanless design　 • Totally IP 65 Rating　 • Intel Atom N270 1.6GHz processor soldered onboard　 • 15" TFT LCD (350cd/m2) with resolution of 1024x768 • Stainless Steel Enclosure Panel PC • One 200-pin SO-DIMM socket, support DDRII up to 1GB　　 • Resistive touch screen　 • DC 11~28V power input on board Technical Specifications System Processor Intel Atom N270 1.6GHz processor System Memory 1 x 200-pin DDRII SO-DIMM 400/533MHz up to 1GB System Chipset Intel 945GSE + ICH7M Basic I/O ports 1 x DC power input, 1 x PS/2 KB & mouse, 1 x Ethernet Port (10/100MB), 2 x USB 2.0 Standard I/O ports 1 x DC power input, 1 x PS/2 KB & mouse, 1 x Ethernet Port (10/100MB), 2 x USB 2.0, 2 x COM Full function I/O ports 1 x DC power input, 1 x PS/2 KB & mouse, 1 x Ethernet Port (10/100MB), 2 x USB 2.0, 2 x COM, 1 x VGA, 1 x Audio Solid Storage Disk 1 x 2.5" SATA HDD,1 x Internal CF slot Expansion Slots None OS Support Windows XP Pro, XP Embedded LCD Display Type 15” TFT-LCD Max. Resolution 1024x768 Max. Colour 16.2M Luminance (cd/m2) 350 View Angle H:140° / V:125° Backlight Lifetime 50,000hrs Touchscreen Type Analogue resistive Light Transmission 75% Power Supply Power Input DC 11~28V Mechanical Construction Stainless steel front bezel and Housing IP Rating IP 65 Mounting VESA 75x75 Dimension 399(W)x324(H)x53(D)mm Power Consumption 30.24W at Intel Atom N270 1.6GHz CPU Net Weight 12.5kgs Environmental Operating Temperature 0~50 OC Storage Temperature -20~60 OC Storage Humidity 10~90% @40 OC non-condensing Certificate Meet CE/FCC Class A Подробнее
