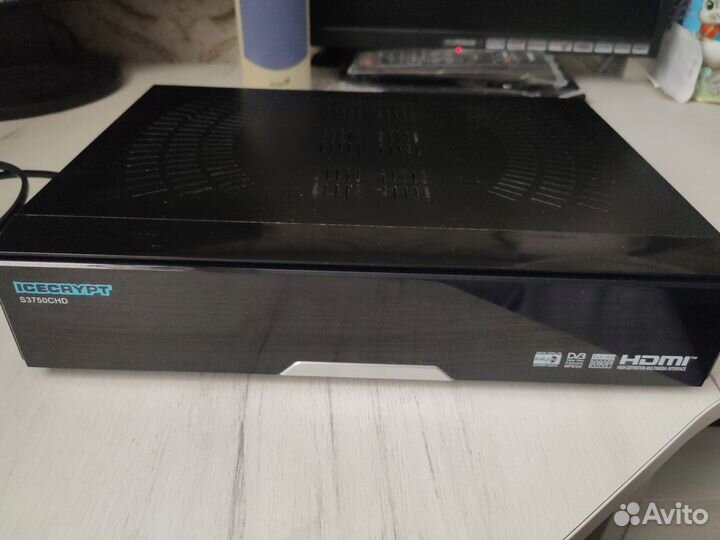

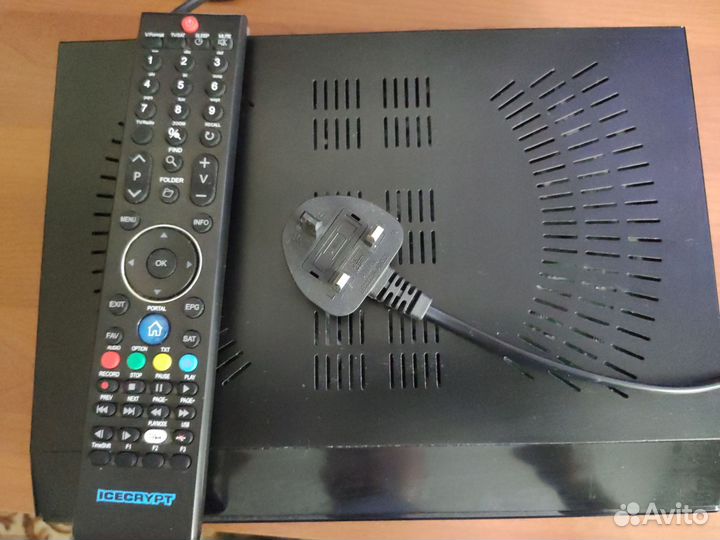

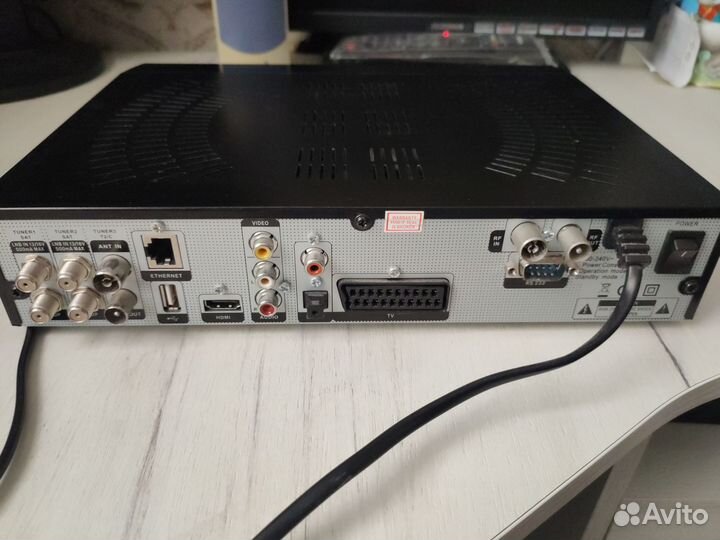

Спутниковый ресивер icecrypt S3750CHD

Спутниковый ресивер ICECRYPT S3750CHD Рабочий Вилка Британская(!) Twin Card Readers Dual Boot - Spark or E2 Unlimited Channels Supported (TV & Radio) Two High Speed USB Ports (Front and Rear) Plug In Support True Colour, User Friendly On Screen Display (OSD) Timer Support - Set up to Eight Timers Multiple Sort Types - including FAV, SAT, HD HbbTV and WebTV (where available) YouTube, RSS Reader, Spark Portal and Opera Web* Full 1080P High Definition by HDMI** Multimedia Playback including MKV, AVI, MPG Record, Timeshift and Playback with External HDD EPG Support (Where Broadcast) Parental Lock Embedded Games Digital Audio Output - Coaxial and Optical File Sharing via Local Network Alphanumeric Vacuum Fluorescent Display Ethernet Connection, WiFi and 3G Support (Icecrypt WiFi Dongle Available seperately) DiSEqC 1.0, 1.1, 1.2 and USALS Compatible Channel Switching Time <1 Second SD Output by SCART, RCA or Modulator Multi Language Support (Menu and OSD) Multi Language Support (Menu and OSD) 0.5W Stand-by Power Consumption Technical Specification: Tuner & Channel Decoder (Satellite) Input Connector: FEC Decoder F-type, IEC 169-24, Female Output Connector: F-type, IEC 169-24, Female Frequency Range: 950MHz ~ 2150MHz Input Impedance: 75Ω, unbalanced Sensitivity: - 65 to -25dBm LNB Power: 13.5/18VDC, max.500mA 22KHz Tone: (22±4)KHz, (0.6±0.2) DiSEqC Control: V V1.0/1.1/1.2/USALS Compatible Demodulation: QPSK / 8PSK/ 16APSK Input Symbol Rate: 2 ~ 45 Ms/s(QPSK of DVB-S)
 / 2 ~ 45 Ms/s(QPSK of DVB-S2) / 2 ~ 45 Ms/s(8PSK of DVB-S2) FEC Decoder: 1/2, 2/3, 3/5, 3/4, 4/5, 5/6, 6/7, 7/8, 8/9 and 8/10 (QPSK) / 3/5, 2/3, 3/4, 5/6, 8/9 and 9/10 (8PSK) / 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 (16APSK) Tuner & Channel Decoder (Terrastrial/Cable) Input Connector: IEC 169-2 Female Output Connector: IEC 169-2 Male Frequency Range: VHF L: 51 ~ 142.5 MHz VHF H: 149.5 ~ 426 MHz UHF: 434 ~ 858 MHz RF Loop in Standby: Active Demodulation: QPSK / 16QAM / 64QAM / 256QAM FEC Decoder: 1/2, 3/5, 2/3, 3/4, 4/5 and 5/6 Gaurd nterval: 1/4, 1/8, 1/16 and 1/32 Demodulation: QPSK / 8PSK/ 16APSK Channel Bandwidth: 6, 7 and 8 MHz FFT Mode: 2K / 8K MPEG Transport Stream A/V Decoding Transport Stream: H.264 (MPEG-4 part 10, MPEG- 4/AVC and H26L) / MPEG-II ISO/IEC 13818-2/11172-2 Profile Level: MPEG-4/AVC MP@L4, MPEG-II MP@HL Input Rate: Max. 120Mbit/s Video Formats: 4:3 Letter Box, 4:3 PanScan, 16:9 Video Resolution: 720 x 576i, 720 x 576p, 720 x 480i, 720 x 480p, 1280 x 720p, 1920 x 1080i, 1920 x 1080p Audio Decoding: Dolby Digital, MPEG-1 Layer 1 and 2, MPEG-2 Layer 2 Audio Mode: Left/Right/Stereo/Mono Sampling Rate: 32KHz, 44.1KHz and 48KHz (According to input) Main Systems Main Processer: ST7162 Memory: RAM: 256 Mbytes / FLASH : 512 Mbytes SLC NAND Flash Audio / Video & Data IN/OUT RCA: CVBS Video Output, Audio L, R Output Audio: Digital Coaxial and Optical (S/PDIF) Scart: TV SCART (CVBS/RGB) HDMI: Video & Audio Output USB: USB 2.0 Host Front & Rear Support. (5 Vdc 500 mA max.) Ethernet: RJ45 connector, 100 Mbps RF In: IEC 169-2 Female RF Out: (Modulator): IEC 169-2 Male RS-232: 9 Pin D Type Front Panel Slot: 2 Smart Card Slot USB: USB 2.0 Host Display: Vacuum Fluorescent Display Buttons: 7 Keys (Power, Left, Right, Up, Down, OK, Menu) Power Supply Input Voltage: AC 100-250v, 50/60Hz Type: SMPS Power Consumption: Max. 15W Standby Power: Max. 0.5W Physical Specification Size (W x H x D): 300mm x 55mm x 220mm Weight (Net): 2KG Operating Temp: 0°C ~ +45°C Storage Temp: -10°C ~ +70°C Вышлю в регионы Подробнее
